Oracle Management Cloud 18.3.3 Newsletter - Systems Management
This issue: Aug, 2018

Oracle Management Cloud (OMC) is a suite of next-generation integrated monitoring, management, analytics and remediation cloud services that leverage machine learning and big data techniques against the full breadth of the operational and security data set. OMC’s Unified Platform helps customers improve IT stability, prevent application outages, increase DevOps agility and harden security across their entire application and infrastructure portfolio. The Security Announcement for OMC can be accessed here. Bookmark this wiki page for access to all the OMC Announcement Updates newsletter.

18.3.3 Release Announcements:

Resources:



Application Performance Monitoring

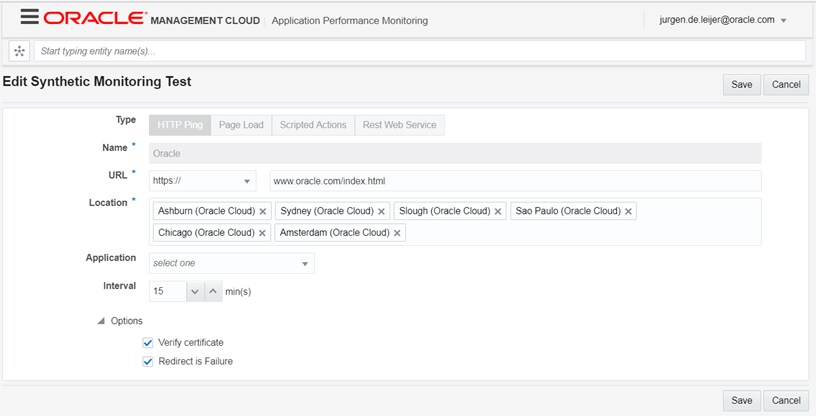

New Oracle public locations to run Synthetic tests from

We have added 4 new locations that can be used from each OMC datacenter:

  • Ashburn (USA)
  • Slough (EUR)
  • Sao Paulo (LAD)
  • Sydney (APAC)

All test types can be pushed to any of these locations for running synthetic tests without the need to deploy a private agent/beacon so very easy to setup and use!

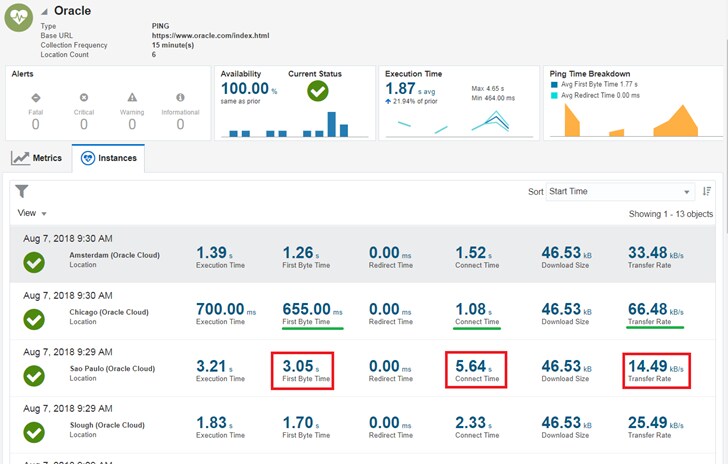

Compare results to identify network delay issues

By running tests from multiple Global locations you can easily compare results and see if End User would be impacted because connection to your web application is slow from distant locations.

It could be an indication to start using CDN services for LAD countries in this example as connect time for your users in LAD is very slow compared to US based users.

Infrastructure Monitoring

Enhancements for Oracle Database

In this release, the following enhancements are available for Oracle Database:

  • Oracle Database 18.3 is supported
  • Oracle Database Instance status monitoring
    Monitoring of an Oracle Database entity includes monitoring of the status and performance of all its database instances, i.e. the status and performance metrics of database instances are available as key-valued metrics for the Oracle Database entity. Entities of type Oracle Database Instance were primarily used for log analytics.

    In this release, the Oracle Database Instance entity now has availability status. This provides a more streamlined way to get alerts and notifications for database instances that are down. To get a holistic view across all database instances in a database, use the (parent) Oracle Database homepage. The homepage shows a summary of status and performance across all database instances.

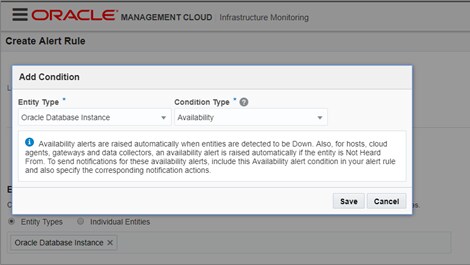

Agent and Host “Not Heard From” Alerts

If an agent (cloud agent, gateway, data collector) or host go down, an alert will automatically be generated indicating that the entity is ‘Not Heard From’. In previous releases, the alert severity of this alert was Warning. In this release, the alert severity has been changed to Fatal to better represent the criticality of the issue.

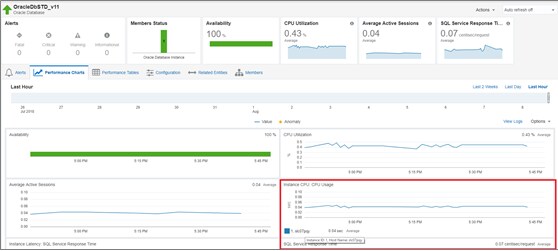

Enhancements in Performance Charts

Performance charts that show key-valued metrics, such as charts that show the CPU Utilization of top processes, typically use the metric keys (such as process ID) to uniquely identify each object (e.g. process) in the chart. While semantically correct, this made it challenging to identify each object. In this release, more user-friendly attributes, such as process name, is now used to identify objects in these types of performance charts.

(Back to Top)

Release Highlights

We are pleased to announce the availability of 18.3.3 release of Oracle Management Cloud. The following are the key updates to existing services in this release:

Application Performance Monitoring:

  • New Oracle public locations to run Synthetic tests from
  • Compare results to identify network delay issues

Infrastructure Monitoring:

  • Enhancements for Oracle Database
  • Agent and Host “Not Heard From” Alerts
  • Enhancements in Performance Charts

Log Analytics:

  • New Log Sources/Parsers
  • Export the Parser and Log Source Definitions
  • Clustering the Log Data Using SQL Fields
  • “Undo” Button in Link Drill-down
  • Increase Syslog Listener Port number in sources
  • Order of File Collection
  • Concatenate Function









Log Analytics

New Log Sources/Parsers

  • Apache

Parsers

  • Apache Kafka Log Format
  • Apache Spark Standard Log Format
  • Apache Cassandra System Log Format
  • Apache Hive Log Format
  • Apache Zookeeper Standard Format
  • Apache Cassandra GC Log Format
  • Apache Hadoop Standard Log Parser

Sources

  • Apache Hive Logs
  • Apache Kafka Logs
  • Apache Hadoop Standard Logs
  • Apache Spark Logs
  • Apache Cassandra DB System Logs
  • Apache Cassandra DB Garbage Collection Logs
  • Apache Zookeeper Logs
  • Microsoft

Parsers

  • Microsoft Exchange Outlook Web Access Log Format
  • Microsoft Exchange Active Monitoring Trace Log Format
  • Microsoft Exchange Diagnostics Service Log Format
  • Microsoft Exchange Authentication Admin Log Format
  • Microsoft Exchange Database Availability Log Format
  • Microsoft DHCP (IPv4) Log Format
  • Microsoft DHCP (IPv6) Log Format
  • Microsoft DNS Log Format
  • Microsoft SharePoint ULS Log Format
  • Microsoft .Net Log4Net Parser

Sources

  • Microsoft Exchange Diagnostics Service Logs
  • Microsoft Exchange Active Monitoring Trace Logs
  • Microsoft Exchange Database Availability Logs
  • Microsoft Exchange Outlook Web Access Probe Logs
  • Microsoft Exchange Authentication Admin Logs
  • Microsoft DHCP (IPv4) Logs
  • Microsoft DHCP (IPv6) Logs
  • Microsoft DNS Logs
  • Microsoft SharePoint Logs
  • Microsoft .Net Log4Net Logs
  • MongoDB

Parser

  • MongoDB Log Format

Source

  • MongoDB Logs
  • NGINX

Parsers

  • NGINX Error Log Format
  • NGINX Access Log Format

Sources

  • NGINX Access Logs
  • NGINX Error Logs
  • Nodejs Log4js

Parser

  • Node.js Log4js Format

Source

  • Node.js Log4js Logs
  • PostgreSQL

Parser

  • PostgreSQL Log Format
Source
  • PostgreSQL Logs
  • McAfee

Parser

  • McAfee VirusScan Enterprise Log Format
Source
  • McAfee VirusScan Enterprise Logs

Export the Parser and Log Source Definitions

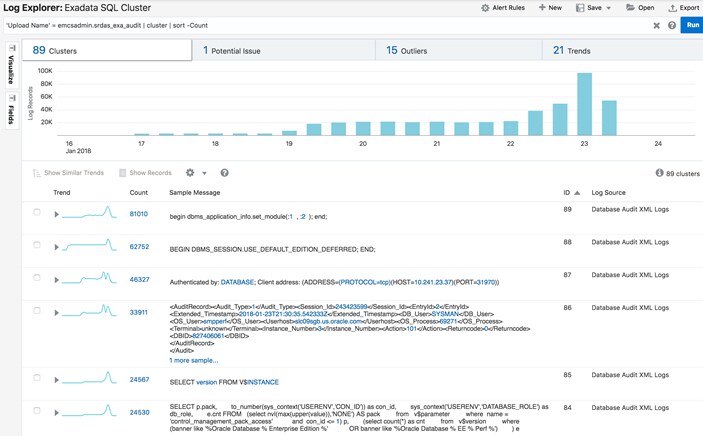

Clustering the Log Data Using SQL Fields

  • Almost half a million log records reduced to 89 clusters
  • Drill down by variables

  • Outliers show rare SQLs

Clustering the Log Data Using SQL Fields

Trends show SQLs that have similar execution pattern

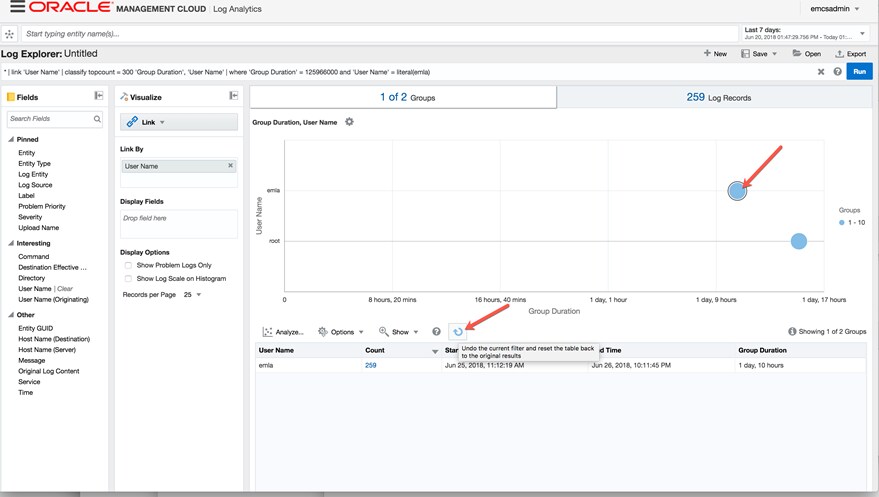

“Undo” Button in Link Drill-down

Increase Syslog Listener Port number in sources

We have changed ports of OOTB log sources so if users are using one of these OOTB sources they get affected

Order of File Collection

If the agent is monitoring a large amount of log data at initial collection time, we start collecting some number of most recent files first, then go back and collect historic files. Every collection could balance some number of recent files and some number of older files so there is always some newer log data flowing in.

Notes:

  • If all data that the log collector needs to collect at initial time is small, then we should keep doing what we do now.
  • There is a configuration to configure this threshold (to change the order)

Concatenate Function

Syntax: concat(String, String)

Concatenates string values from 2 or more fields. Combines together string values and literals into a new field

You can use this function with “Eval” or “Where”

Examples:

  • .. | eval s = concat(host, concat(':', port)) OR ... | eval s = host || ':' || port
  • ... | where concat(host, concat(':', port)) != hostname OR ... | where host || ':' || port != hostname



(Back to Top)
